Gan Epitaxial On Si For Power HEMT E-Mode

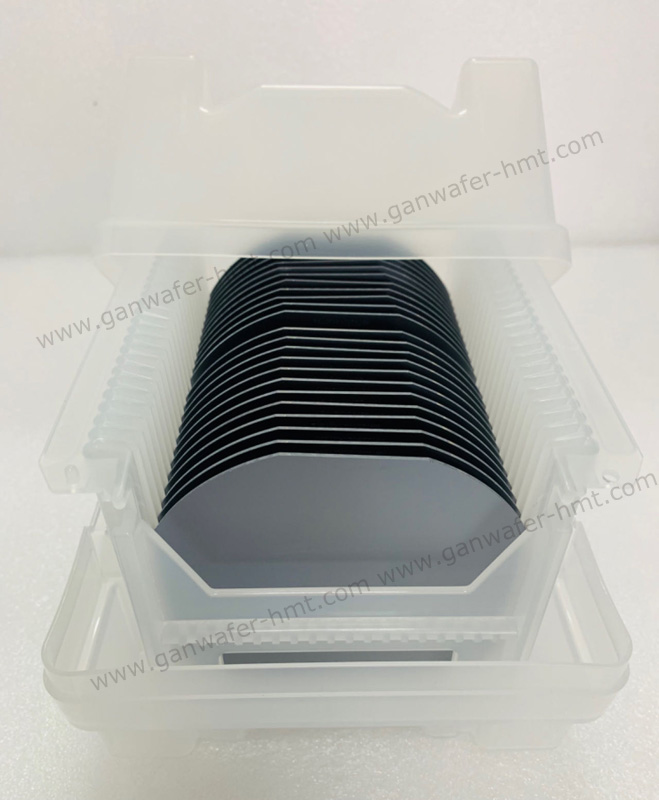

Homray Material Technology provides high-performance and high-quality GaN HEMT epitaxial wafers, including GaN-on-Si Epi wafer with Power HEMT E-mode and D-mode. We supply 2 inch,4inch,6inch,8inch GaN-on-Si Epitaxial Wafer with favourable price on the market in China. Silicon thickness is 675um and 1000um. Customized structure and layer parameters are available jin HMT company.

Benefits of using GaN

• High power
• High frequency

• High power efficiency

• Low power consumption, energy saving

• High-temperature robustness

• Exceed the limitations of current Si power device

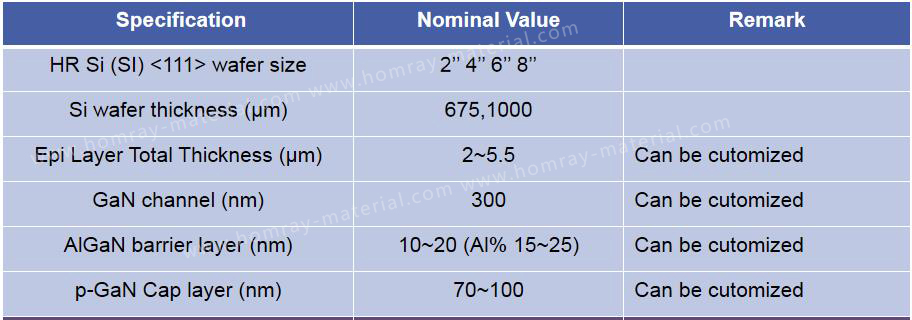

Standard Layer Specification For Power HEMT E-Mode

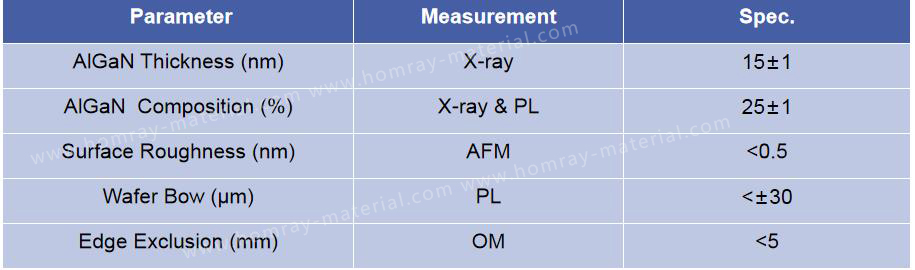

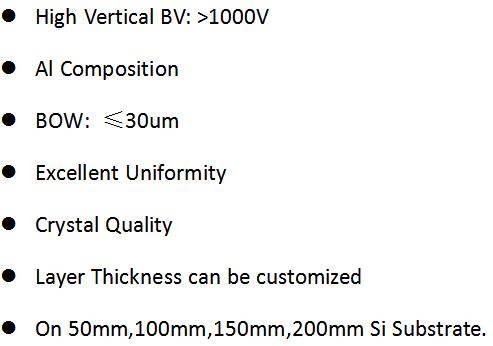

Characterization Specification

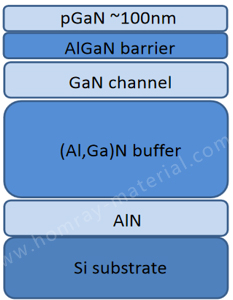

Standard Layer Structure
