GaN Epitaxial Wafer For LED

GaN-On-Sapphire Epi Wafer For LED
Dimension: 4 inch

Substrate: PSS Sapphire
Thickness: 660±10um
Structure: GaN On Sapphire

Product Description

As the leading manufacturer of LED GaN Epi Wafer and GaN-On-Sapphire Epi Wafer For LED application. Homray Material Technology provide 4 inch GaN Epi wafer on PSS sapphire substrate. Excellent uniformity on wavelength and light intensity, high efficiency, better reliability and long lifetime.pli

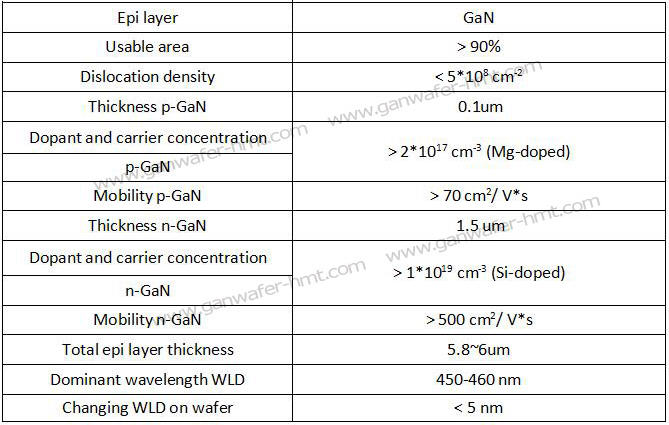

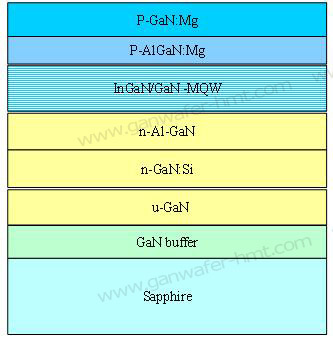

Structure & Normal Parameters (Can be Customized)

 LED Chips
