Home > Products > GaN HEMT Chip Class Wafer > HMT65D100T30BS 650V GaN HEMT

HMT65D100T30BS 650V GaN HEMT

GaN HEMT Chip Class Wafer
D-Mode With Vds>650V
Id 21A & Rdson 100 mohm

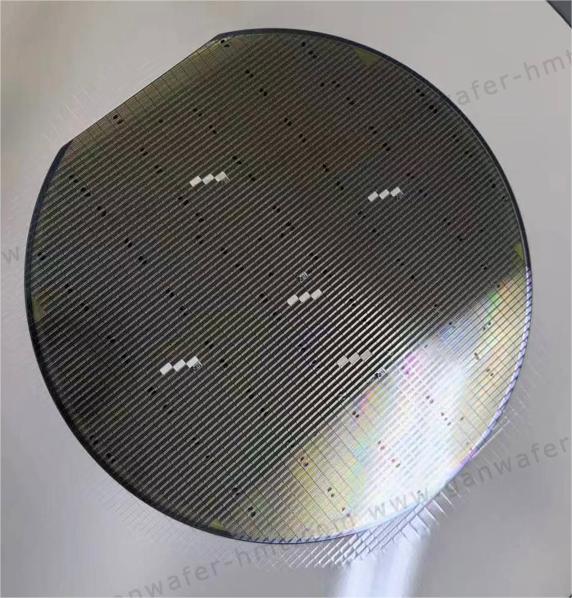

Sawing Wafer With Bare Die

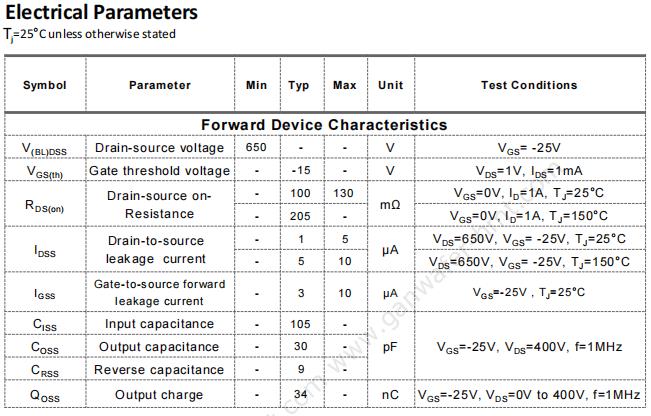

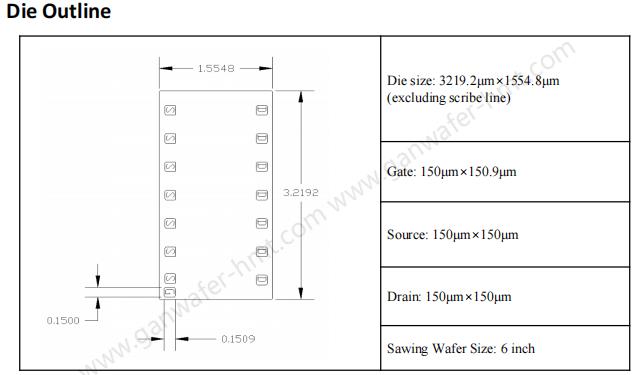

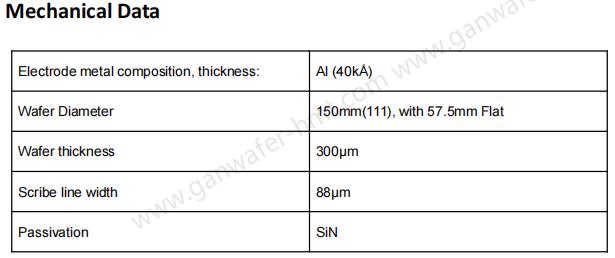

Product Description

Homray Material Technology as the GaN on Si Epi wafer manufactuer and supplier, we also supply Vds>650V GaN HEMT Chip Class Wafer. Customers can directly pick the Bare Die from Sawing Wafer so as to their device package.

Application
Adapter
Renewable energy
Telecom and data-com
Servo motors
Industrial
Automotive






Please contact us for detailed datasheet.
